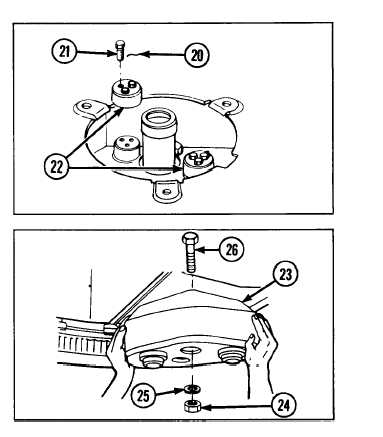

TM 9-2350-238-34-22-46. MAINTENANCE OF TRAVERSING SYSTEM INSTALLATION (CONT).REMOVAL (CONT)910From above cab deck, remove Iockwire(20), six hexagon capscrews (21), andtwo final drive retainer plates (22).With one man insidetraversing final drivelocking nut (24)agon capscrewdrive.flat26),INSPECTION/REPAIRcab well supporting(23), remove self-washer (25), hex-and traversing final1 Inspect for broken,2 Cab traversing unitdamaged, or missing parts.is a repairable assembly. Refer to page 2-227.3 Traversing final drive is a repairable assembly. Refer to page 2-253.4 Repair by replacement of authorized parts (TM 9-2350-238-24P-2).I N S T A L L A T I O N1 With one man inside cab well to helpsupport traversing final drive (1), installtraversing final drive in cab.2 Secure traversing final drive (1) withhexagon capscrew (2), flat washer (3),and new self-locking nut (4). Torque hex-agon capscrew to 200 to 220 ft-lb (271to 298 N-m).2-224
