CROSS PORT RELIEF/ANTICAVITATION MANIFOLD REPAIR -- CONTINUED
0560 00
Disassembly
1. Remove two check valves (5) and relief valve (6) from cross port relief/anticavitation manifold (4).
2. Inspect parts for damage and replace as required.
Assembly
Install relief valve (6) and two check valves (5) into cross port relief/anticavitation manifold (4).
Installation
Install cross port relief/anticavitation manifold (4) with two screws (1), two new lockwashers (2) and two flat washers
(3).

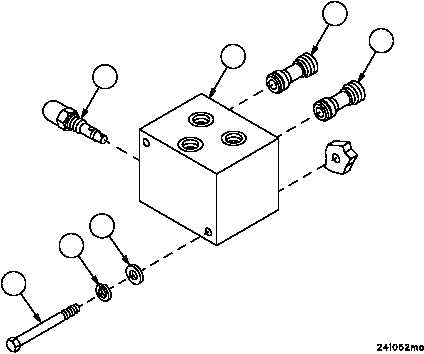

Figure 305
6
4
5
5
1
2
3
NOTE
FOLLOW--ON MAINTENANCE:
Install cross port relief/anticavitation manifold hydraulic
lines and fittings (WP 0576 00)
END OF TASK
