FUEL VALVE CONTROL RODS AND HANDWHEEL REPLACEMENT

Installation (cont) - TM-9-2350-292-20-1_1114

TM-9-2350-292-20-1 Carrier Ammunition Tracked M992A1(NSN 2360-01-362-3021) EIC:AE6 Manual
Page Navigation
1068

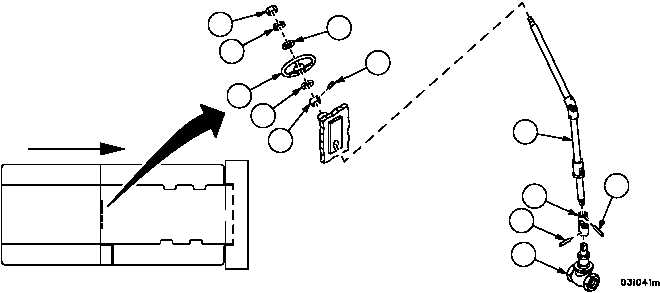

TM 9--2350--292--20--1 0218 00--1 FUEL VALVE CONTROL RODS AND HANDWHEEL REPLACEMENT 0218 00 THIS WORK PACKAGE COVERS: Removal, Installation INITIAL SETUP: Tools and Special Tools General mechanic’s tool kit (item 1, WP 0717 00) Materials/Parts Spring pins (16) (item 96, WP 0718 00) Spring pins (4) (item 97, WP 0718 00) Lockwashers (4) (item 10, WP 0718 00) Seals (4) (item 98, WP 0718 00) Equipment Conditions Powerpack removed (WP 0188 00) NOTE This procedure is the same for all four valve control rods and handwheel assemblies, including left fuel tank control which does not use a flat washer under the nut and lock- washer securing handwheel. Removal 1. Remove nut (1), lockwasher (2), flat washer (3), handwheel (4) and flat washer (5). Discard lockwasher. 2. Loosen socket head setscrew (6) and remove collar (7). 3. Remove two spring pins (8) from universal joint (9). Discard spring pins. 4. Remove control rod assembly (10) and universal joint (9) from control valve (11) and bulkhead rod opening. Figure 28 FORWARD 1 2 10 9 8 8 11 3 6 7 5 4
