ENGINE BATT/GEN GAUGE READS IN YELLOW OR LOWER RED REGION WITH MAIN ENGINE RUNNING (cont)

ENGINE BATT/GEN GAUGE READS IN YELLOW OR LOWER RED REGION WITH MAIN ENGINE RUNNING (cont) - TM-9-2350-292-20-1_380

ENGINE BATT/GEN GAUGE READS IN YELLOW OR LOWER RED REGION WITH MAIN ENGINE RUNNING (cont) - TM-9-2350-292-20-1_382

TM-9-2350-292-20-1 Carrier Ammunition Tracked M992A1(NSN 2360-01-362-3021) EIC:AE6 Manual
Page Navigation
337

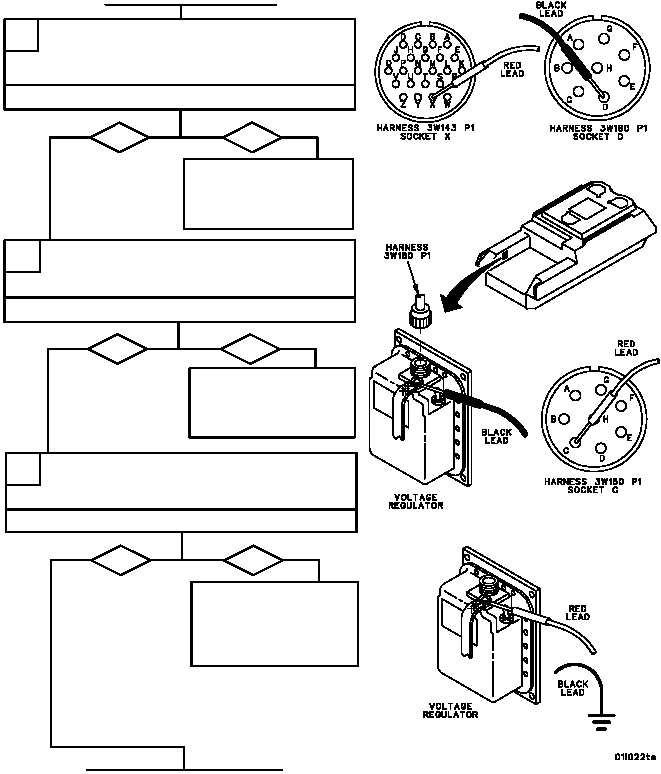

TM 9--2350--292--20--1 0082 00--9 ENGINE BATT/GEN GAUGE READS IN YELLOW OR LOWER RED REGION WITH MAIN ENGINE RUNNING -- CONTINUED 0082 00 CONTINUED ON NEXT PAGE Y Place one multimeter lead in harness 3W143 P1 socket X and other lead on harness 3W180 P1 socket D. Check for continuity. Is continuity present? no yes Repair (WP 0290 00) or replace (WP 0295 00) harness 3W143. Verify fault is corrected. CONTINUED FROM STEP X Z Place one multimeter lead on harness 3W180 P1 socket C and other lead on regulator ground termi- nal. Check for continuity. Is continuity present? no yes Repair (WP 0290 00) or replace (WP 0297 00) ground lead to pin C. Verify fault is corrected. AA Is continuity present? no yes Repair (WP 0290 00) or replace (WP 0239 00) ground lead to vehicle ground. Verify fault is corrected. Place one multimeter lead on regulator ground ter- minal and other lead to vehicle ground. Check for continuity.
