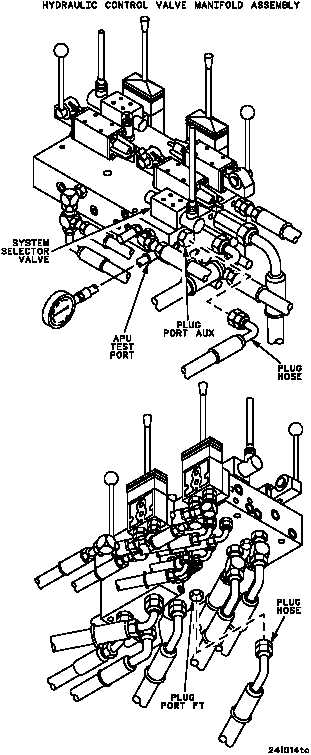

TM 9--2350--292--20--1 0090 00--4 SLOW OR NO HYDRAULIC COMPONENT OPERATION WITH HYDRAULIC SELECTOR SET IN AUXILIARY POSITION -- CONTINUED 0090 00 I Are both readings 1650--1750 psi? CONTINUED FROM STEP G AND H no yes 1. Disconnect hoses from ports AUX and FT on the control valve manifold. 2. Plug hoses and manifold. 3. Start the APU (TM 9--2350--292--10). 4. Place the system selector valve in the AUX position and read the gauge in the test port. 5. Shift the system selector valve to the fuel transfer position. Record gauge readings. Replace system selector valve (WP 0562 00). Verify fault is corrected. CONTINUED ON NEXT PAGE WARNING
