532

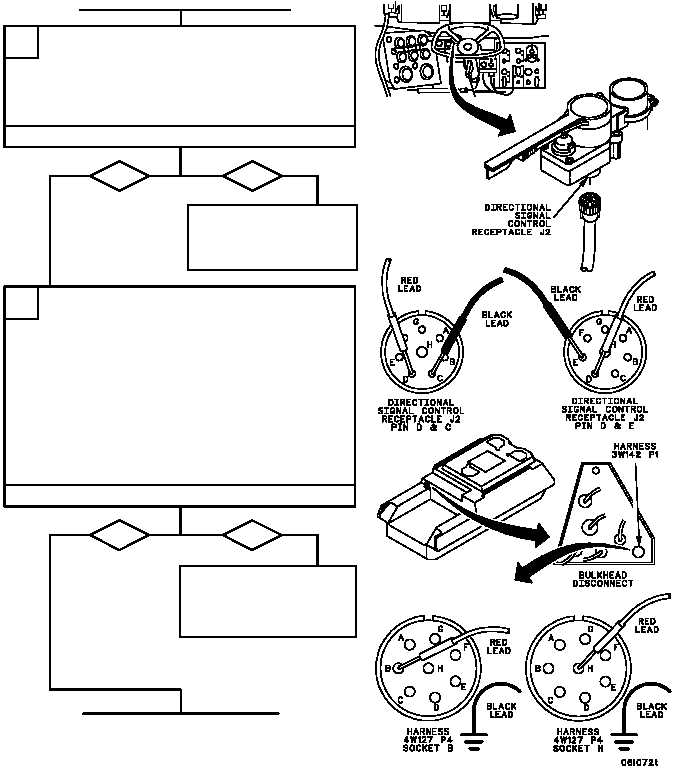

TM 9--2350--292--20--1 0117 00--5 STOPLIGHTS FAIL TO OPERATE -- CONTINUED 0117 00 no yes Replace directional signal control (WP 0267 00 or WP 0268 00). Verify fault is corrected. J 1. Place directional signal control lever to the center position (TM 9--2350--292--10). 2. Place one multimeter lead on directional signal control receptacle J2 pin D and other lead on pin C and E (one at a time). Check for continuity. Is continuity present at both checks? CONTINUED FROM STEP C AND I CONTINUED ON NEXT PAGE no yes Repair (WP 0290 00) or replace (WP 0324 00) harness 4W127. Verify fault is corrected. K 1. Reconnect harness 4W127 P1 to directional signal control. 2. Open air intake grilles above battery compartment (TM 9--2350--292--10). 3. Disconnect harness 3W142 P1 from bulkhead disconnect. 4. Turn MASTER switch ON (TM 9--2350--292--10). 5. Place multimeter red lead in harness 4W127 P4 socket B and H (one at a time) while holding black lead to ground. Check for voltage. 6. Turn MASTER switch OFF (TM 9--2350--292--10). Is 24 V dc present at both checks?
