NO POWER WHEN MASTER SWITCH IS TURNED ON (cont)

NO POWER WHEN MASTER SWITCH IS TURNED ON (cont) - TM-9-2350-292-20-1_625

NO POWER WHEN MASTER SWITCH IS TURNED ON (cont) - TM-9-2350-292-20-1_627

TM-9-2350-292-20-1 Carrier Ammunition Tracked M992A1(NSN 2360-01-362-3021) EIC:AE6 Manual
Page Navigation
582

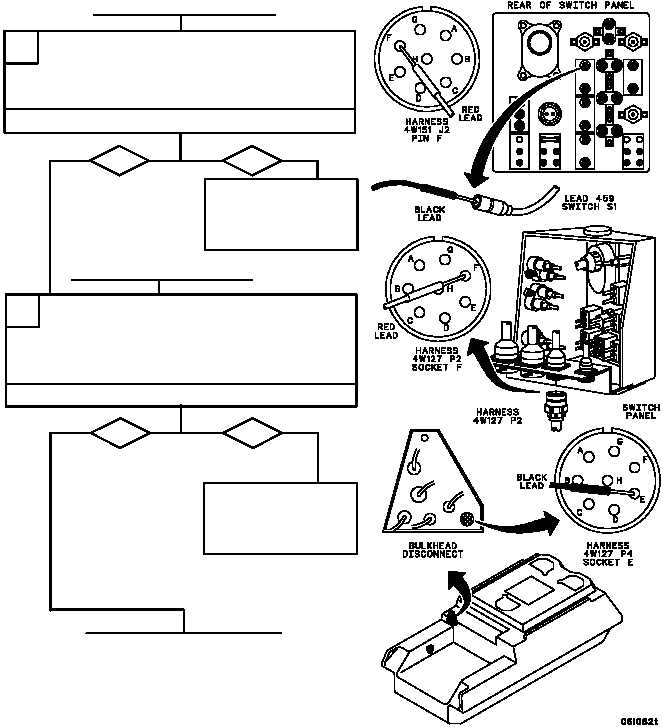

TM 9--2350--292--20--1 0126 00--9 NO POWER WHEN MASTER SWITCH IS TURNED ON -- CONTINUED 0126 00 no yes O Place one multimeter lead in lead 459 switch S1 connector socket and other lead on harness 4W151 J2 pin F. Check for continuity. Is continuity present? CONTINUED FROM STEP N P 1. Place one multimeter lead in harness 4W127 P4 socket E and other lead in harness 4W127 P2 socket F. Check for continuity. 2. Turn MASTER switch OFF (TM 9--2350--292--10). Is continuity present? no yes Repair (WP 0290 00) or replace (WP 0324 00) harness 4W127. Verify fault is corrected. CONTINUED ON NEXT PAGE Repair (WP 0290 00) or replace (WP 0242 00) harness 4W151. Verify fault is corrected. CONTINUED FROM STEP M
